175M - Swivel Elbow Male Part

90° Elbow with single lug.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

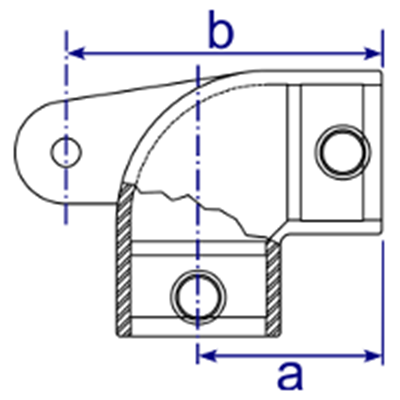

Product Data & Dimensions

Size a (mm) b (mm) Weight (kg) Box Qty* Part No
  D48   68   117   0.90   24   175M-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
