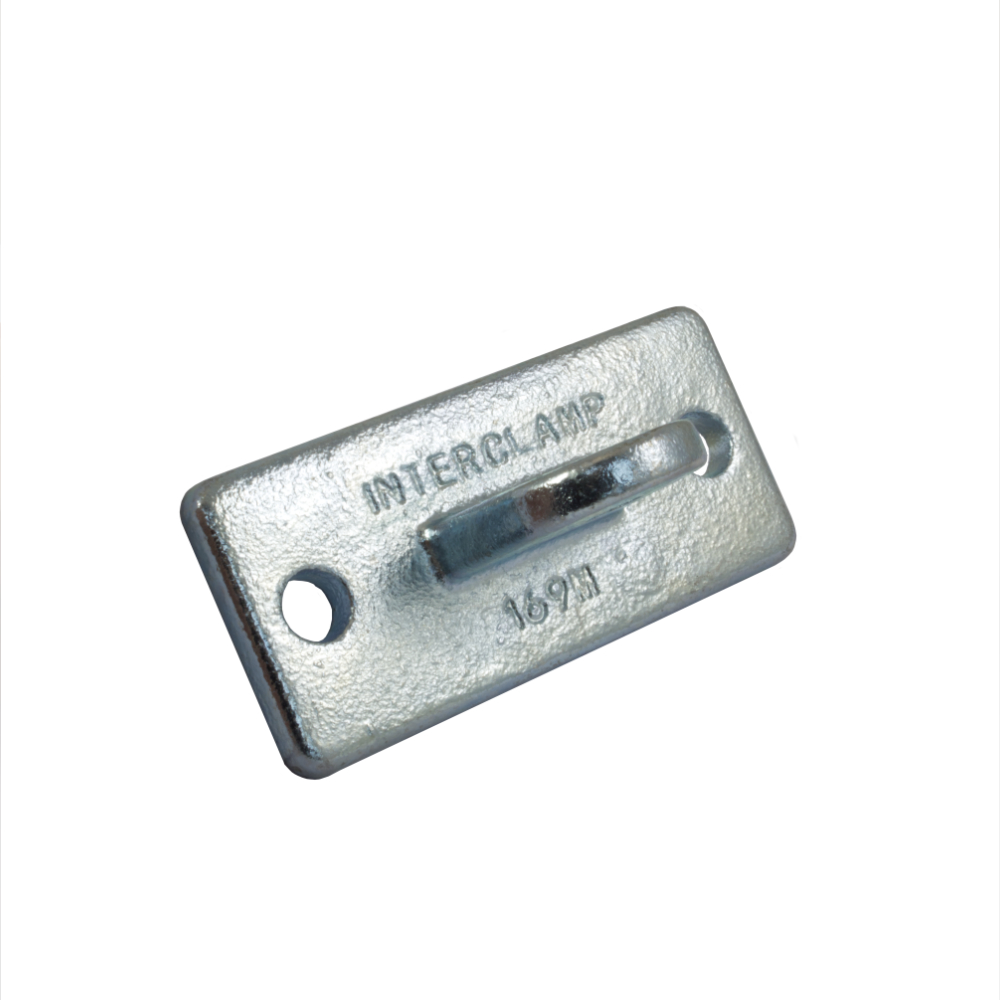

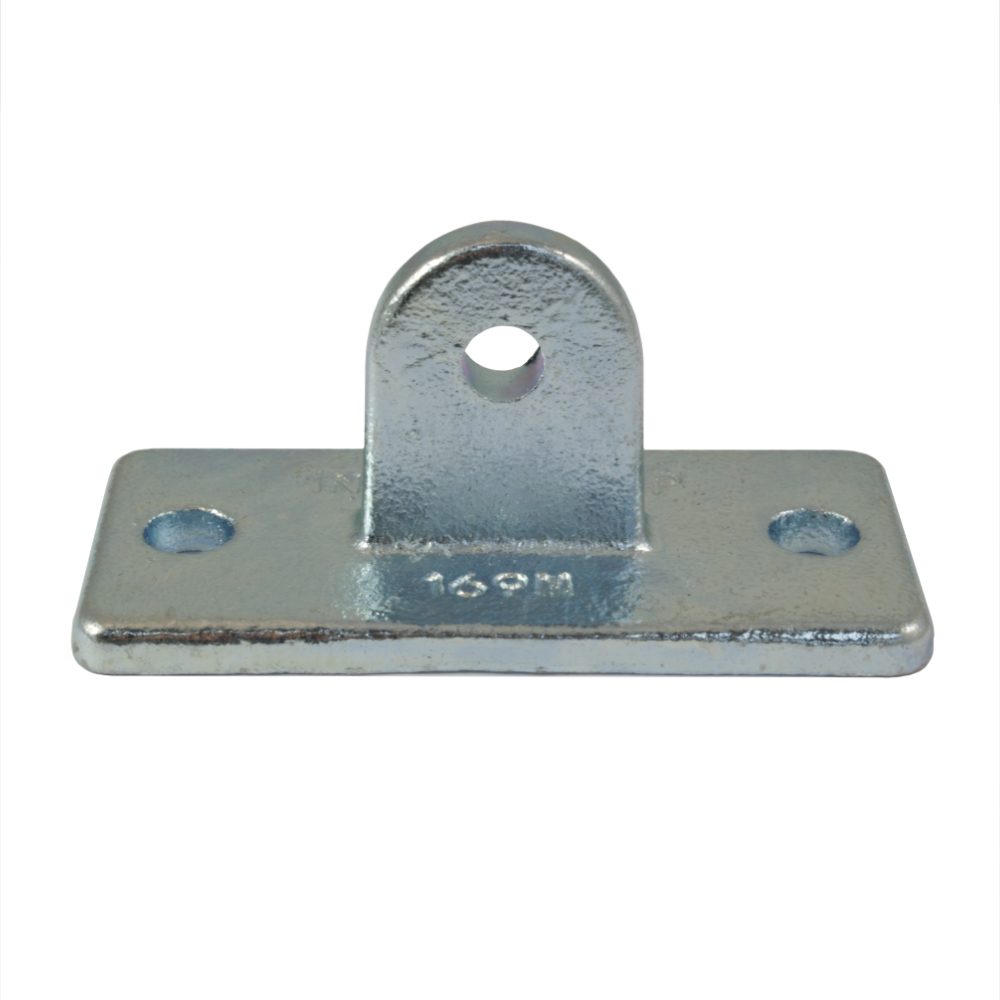

169M - Swivel Wall Fixing

169M - Swivel Wall Fixing

A versatile swivel fitting, useful for fixing angled tubes to walls etc. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. N.B. This fitting is available in one size only to suit all sizes of type 173F.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Range Print < Previous Next >

Product Data & Dimensions

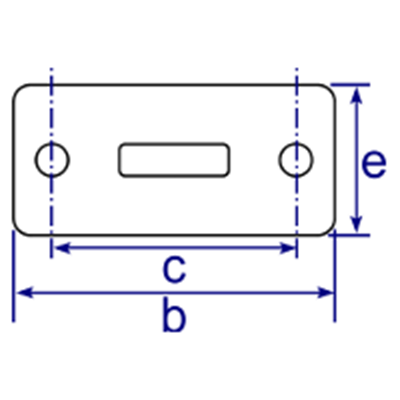

Dimensions Image 1 - 169M - Swivel Wall Fixing

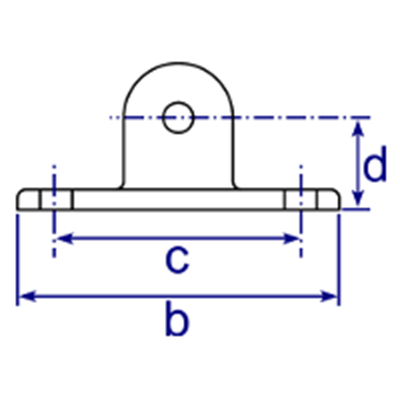

Dimensions Image 2 - 169M - Swivel Wall Fixing
Size b (mm) c (mm) d (mm) Hole Dia (mm) Weight (Kg) Box Qty* GTIN / EAN No
  -   112   85   32   11   0.37   100   5060511021906

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
