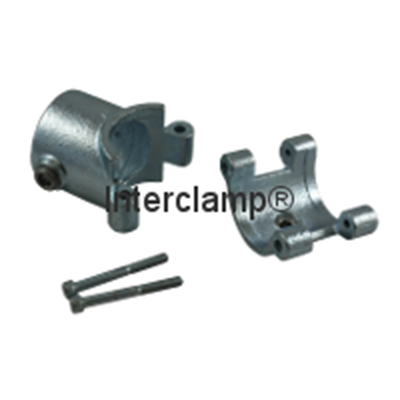

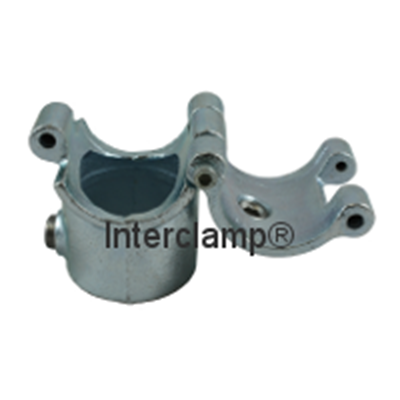

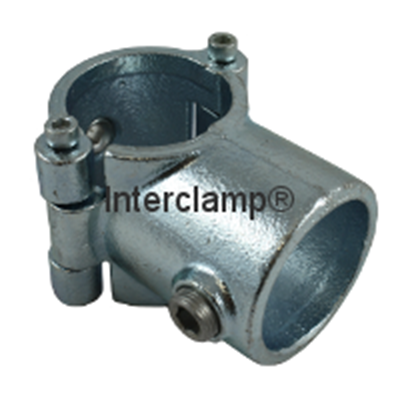

136 - Split Tee Clamp

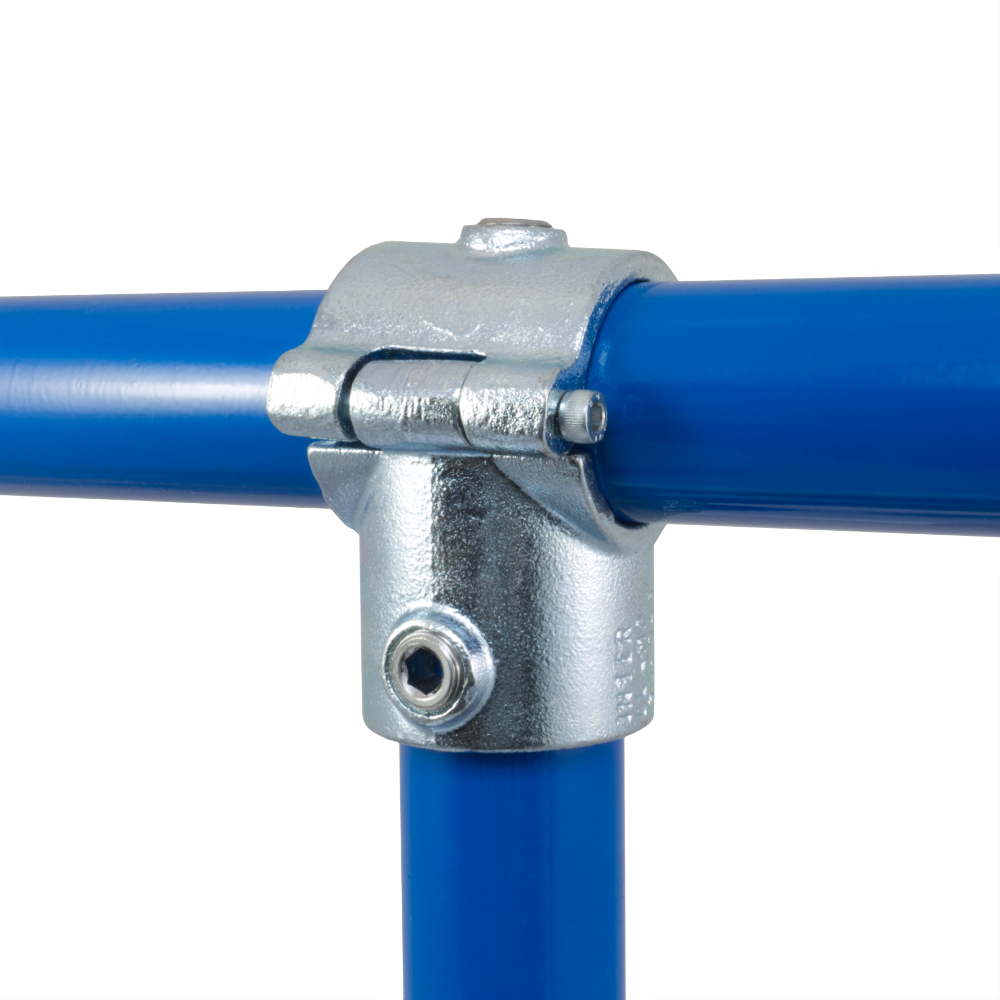

90° bolt-on joint, often used to make additions or alterations to existing structures where a type 101 or similar cannot be fitted. Type 135 is a similar clamp-on fitting. The through tube (horizontal in photo) cannot be joined within the fitting.

Product Data & Dimensions

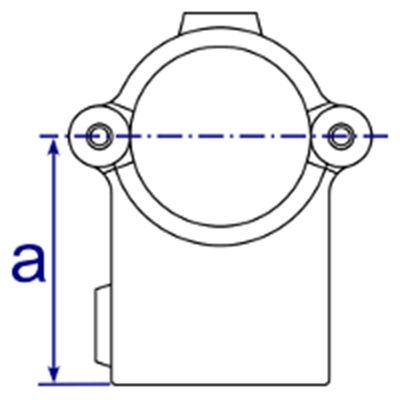

Size a (mm) Weight (kg) Box Qty* Part No
  C42   60   0.63   40   136-C42
  D48   69   0.83   36   136-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
