123 - Variable Elbow (40° - 70°)

123 - Variable Elbow (40° - 70°)

Variable 40° to 70° angle joint, often used to join staircase top rail to upright at top end of staircase.

Range Print < Previous Next >

Product Data & Dimensions

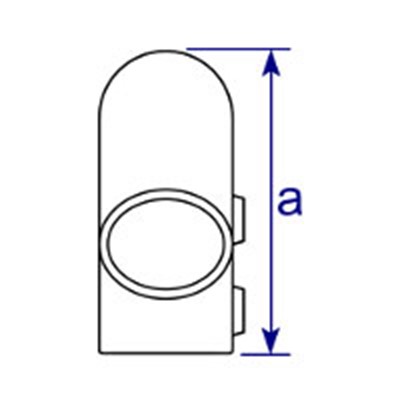

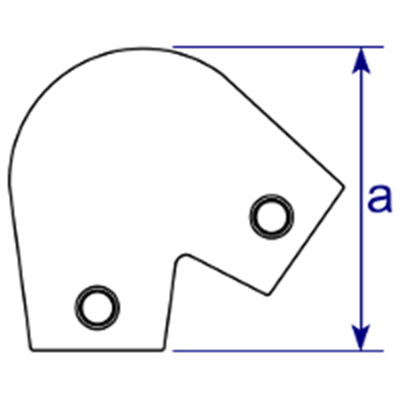

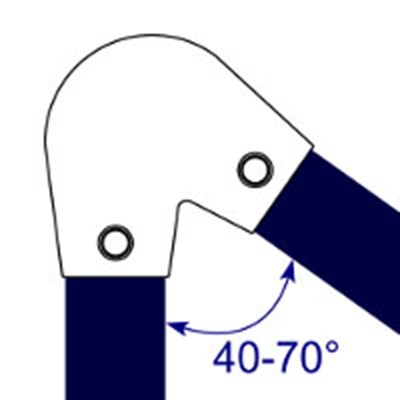

Dimensions Image 1 - 123 - Variable Elbow (40° - 70°)
Dimensions Image 2 - 123 - Variable Elbow (40° - 70°)
Dimensions Image 3 - 123 - Variable Elbow (40° - 70°)
Size Weight (Kg) Box Qty* GTIN / EAN No
  B34   0.57   35   5060511020305
  C42   0.89   25   5060511020312
  D48   1.15   15   5060511020329

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

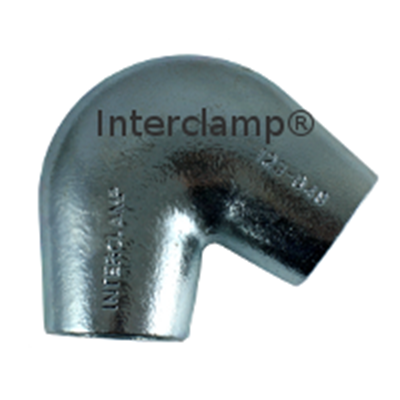

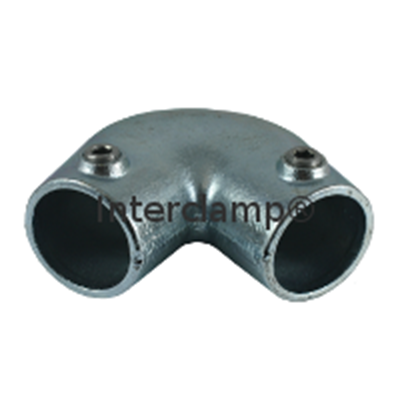

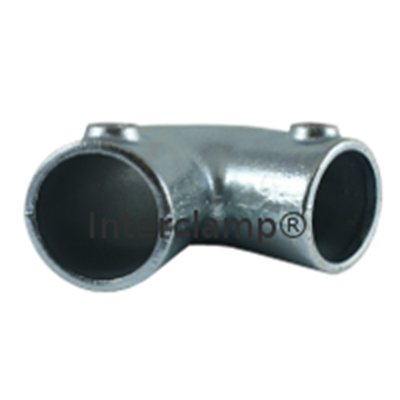

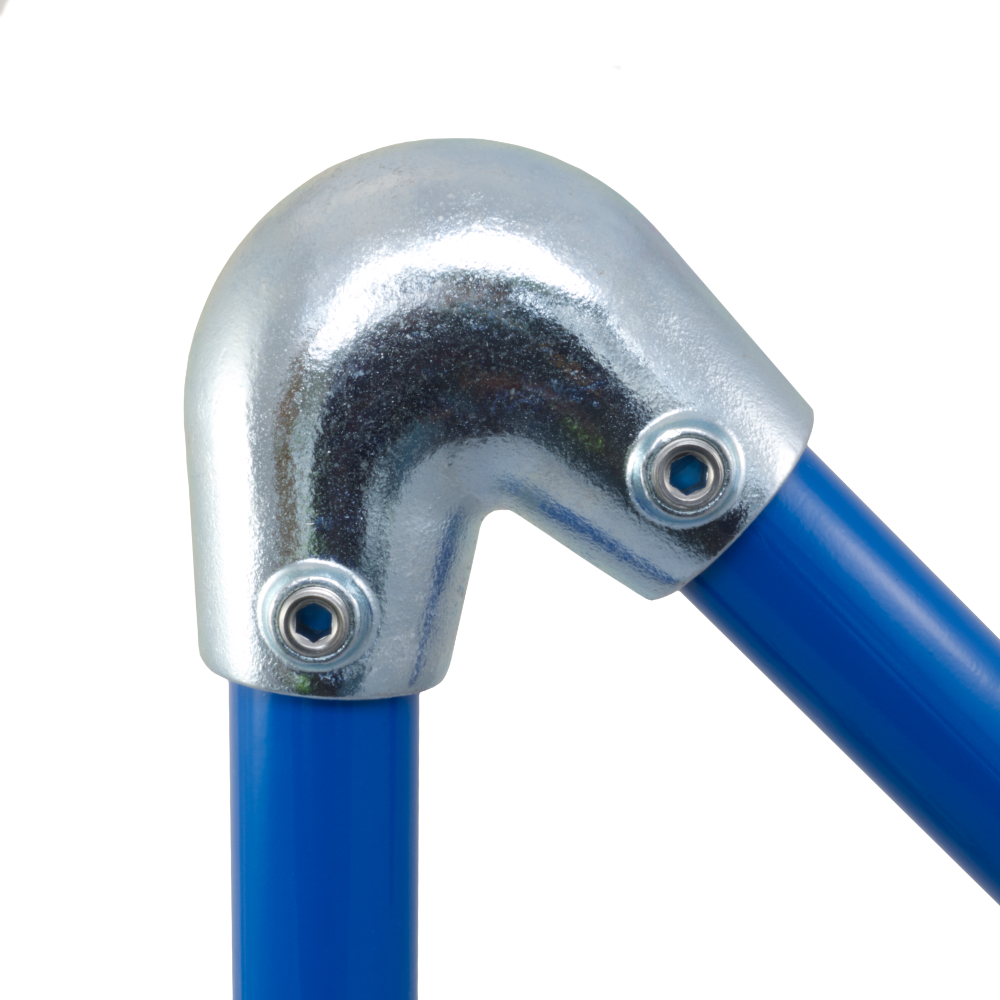

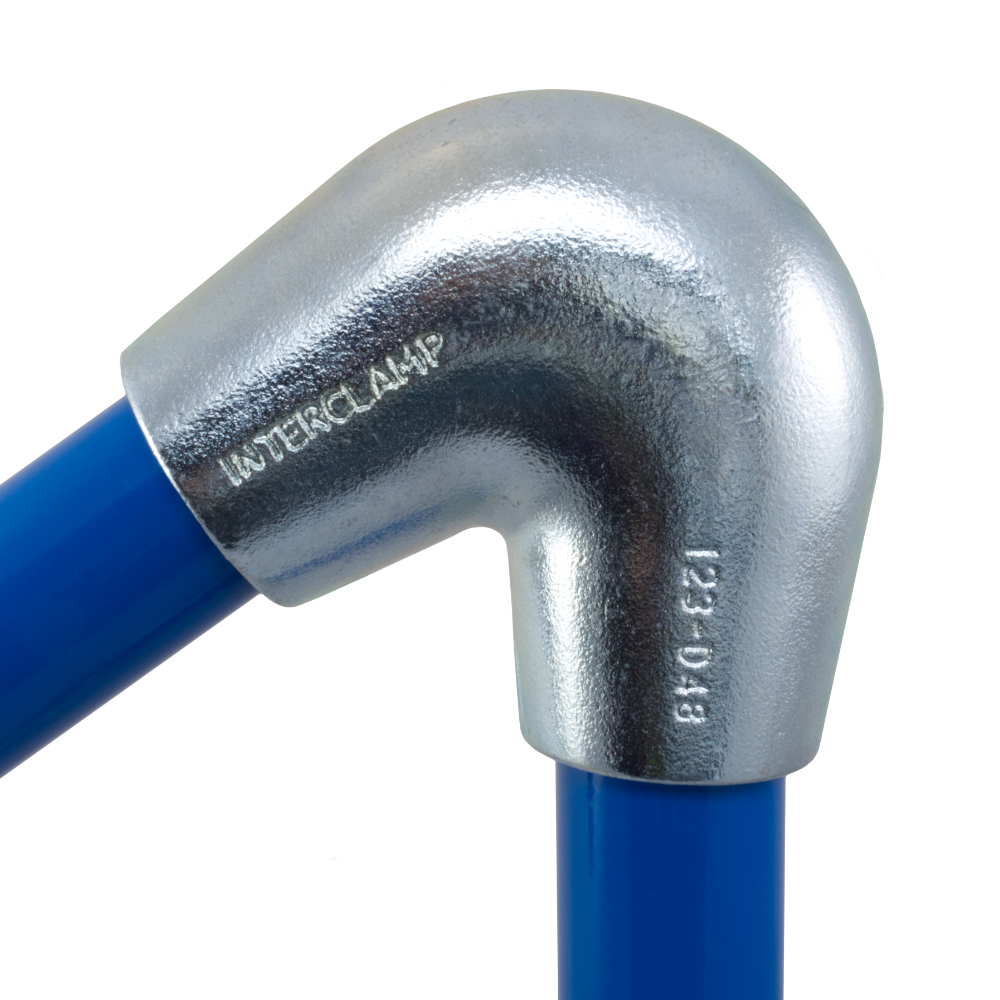

Product Images 1 - 123 - Variable Elbow (40° - 70°)
Product Images 2 - 123 - Variable Elbow (40° - 70°)
Product Images 3 - 123 - Variable Elbow (40° - 70°)
