116 - Three Way Through

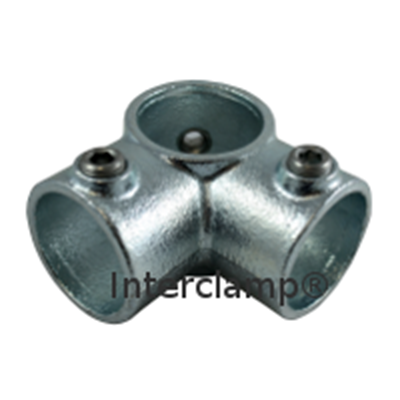

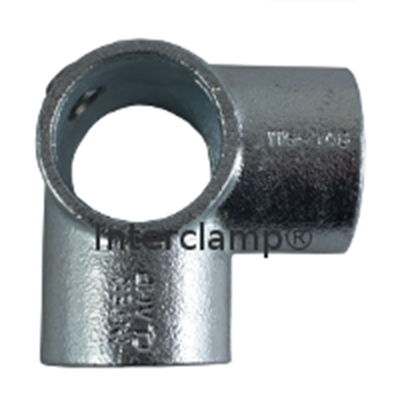

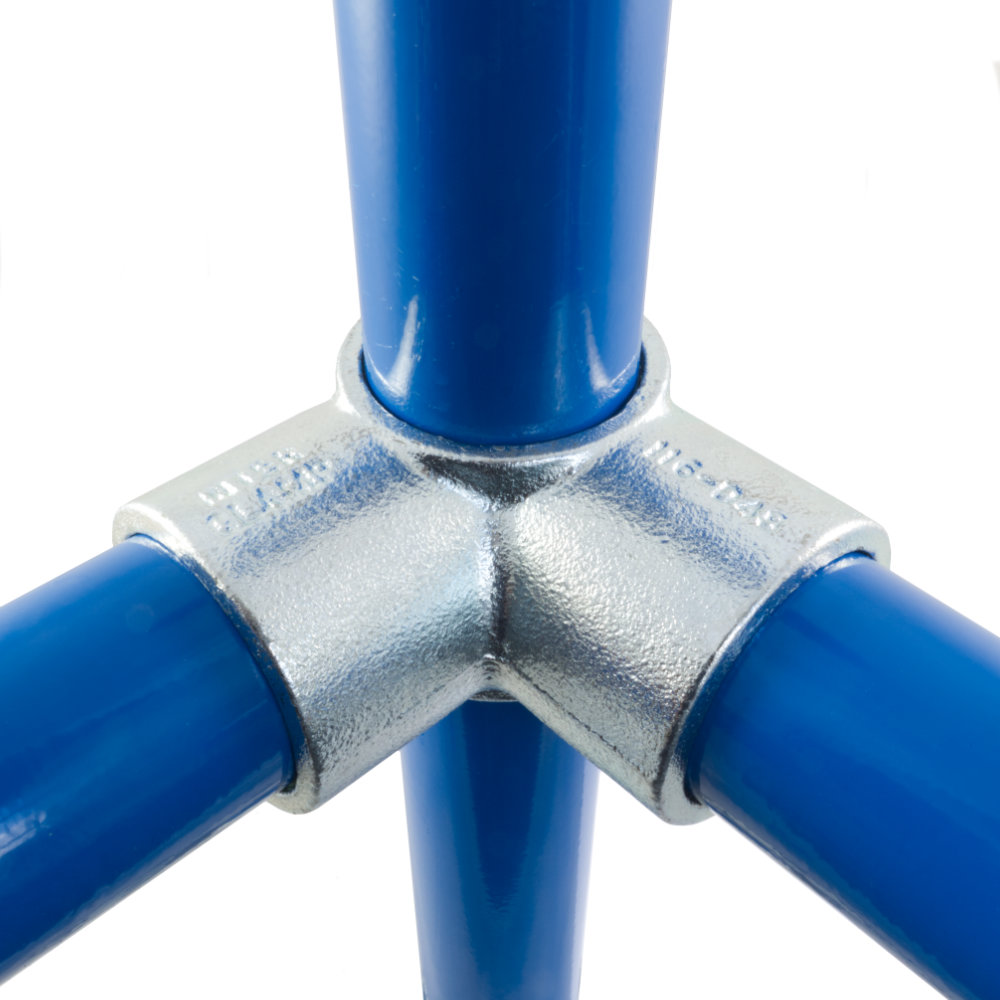

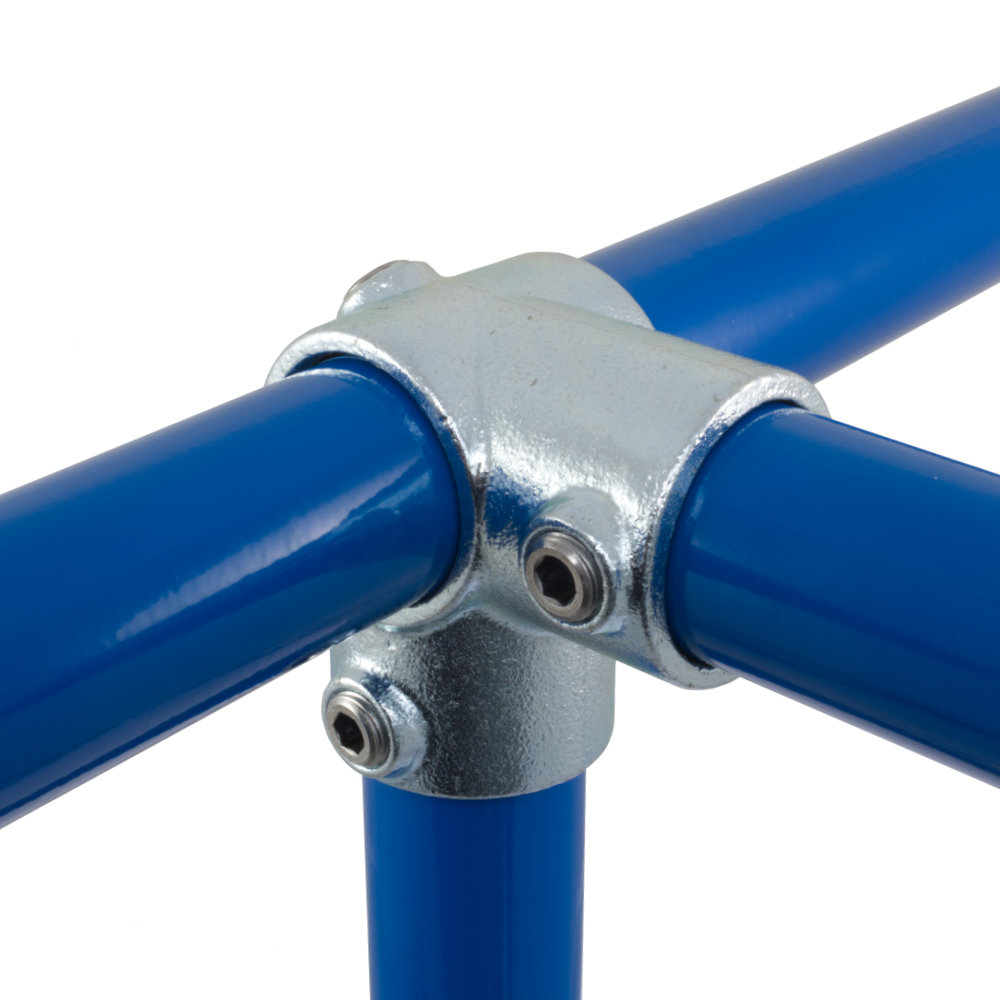

90° corner joint, often used on middle rail on level sites and often paired with type 128. The through tube (vertical in photo) cannot be joined within the fitting.

Product Data & Dimensions

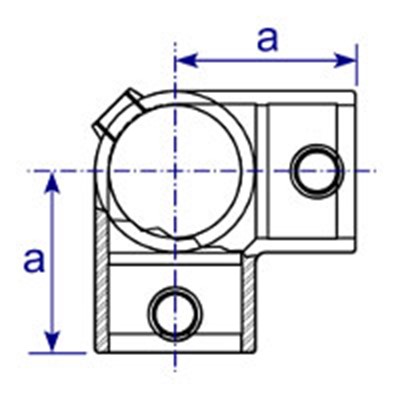

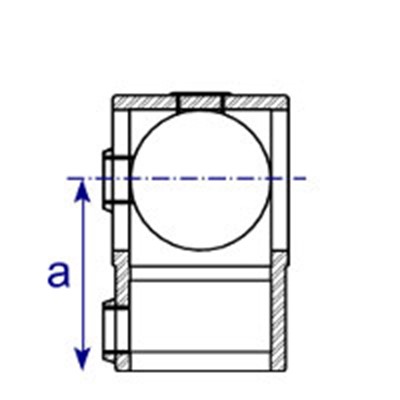

Size a (mm) Weight (kg) Box Qty* Part No
  A27   41   0.29   105   116-A27
  B34   46   0.43   56   116-B34
  C42   60   0.63   40   116-C42
  D48   68   0.73   28   116-D48
  E60   84   1.3   15   116-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
