104 - Long Tee

104 - Long Tee

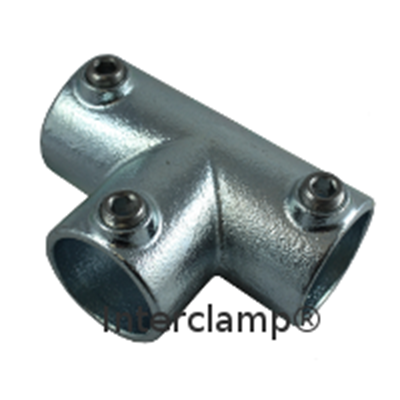

Typically used on straight and level guardrail to connect the upright to the top rail. Tubes can be joined inside a type 104 - long tee fitting. Normally used in conjunction with the type 119 - 2 socket cross.

PLEASE NOTE: This structural tube clamp can be used where through tube (horizontal in photo) has to be joined within the fitting. Where such a joint is not required, type 101 - short tee fitting can often be used as an alternative.

Range Print < Previous Next >

Product Data & Dimensions

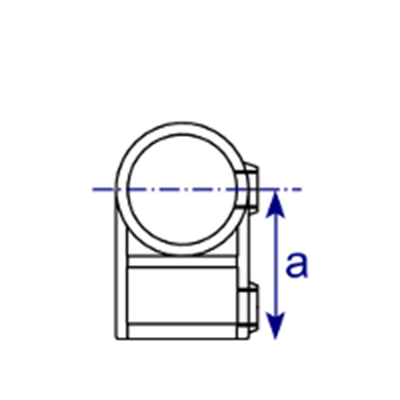

Dimensions Image 1 - 104 - Long Tee

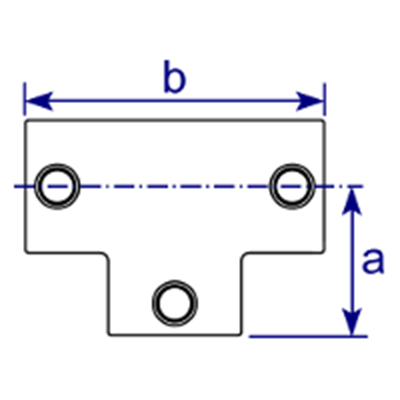

Dimensions Image 2 - 104 - Long Tee
Size a (mm) b (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   41   82   0.35   80   5060511020114
  B34   46   92   0.51   50   5060511020121
  C42   60   120   0.85   28   5060511020138
  D48   68   135   0.98   22   5060511020145
  E60   84   168   1.65   10   5060511020152

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

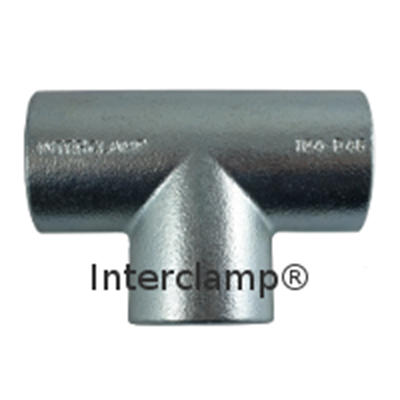

Product Images 1 - 104 - Long Tee
Product Images 2 - 104 - Long Tee

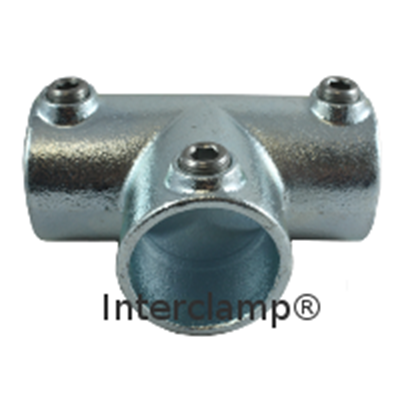

Product Images 3 - 104 - Long Tee
