101 - Short Tee

101 - Short Tee

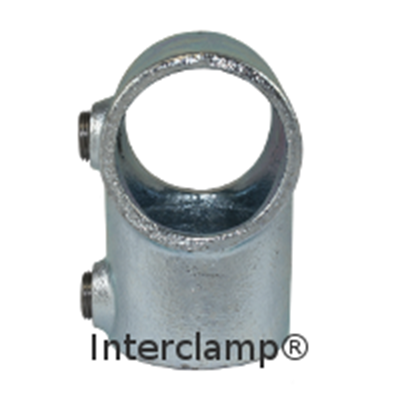

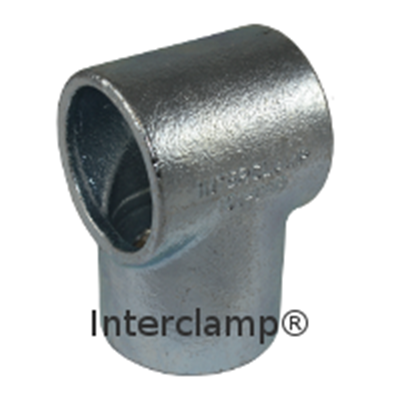

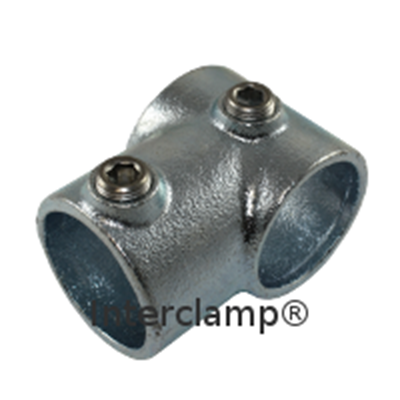

Typically used on straight and level guardrails to connect the upright to the top rail or end or mid rail to the upright. Tubes cannot be joined inside a type 101, to join tubes inside the fitting use the type 104 - long tee. Normally used in conjunction with the type 125 - 90 degree elbow.

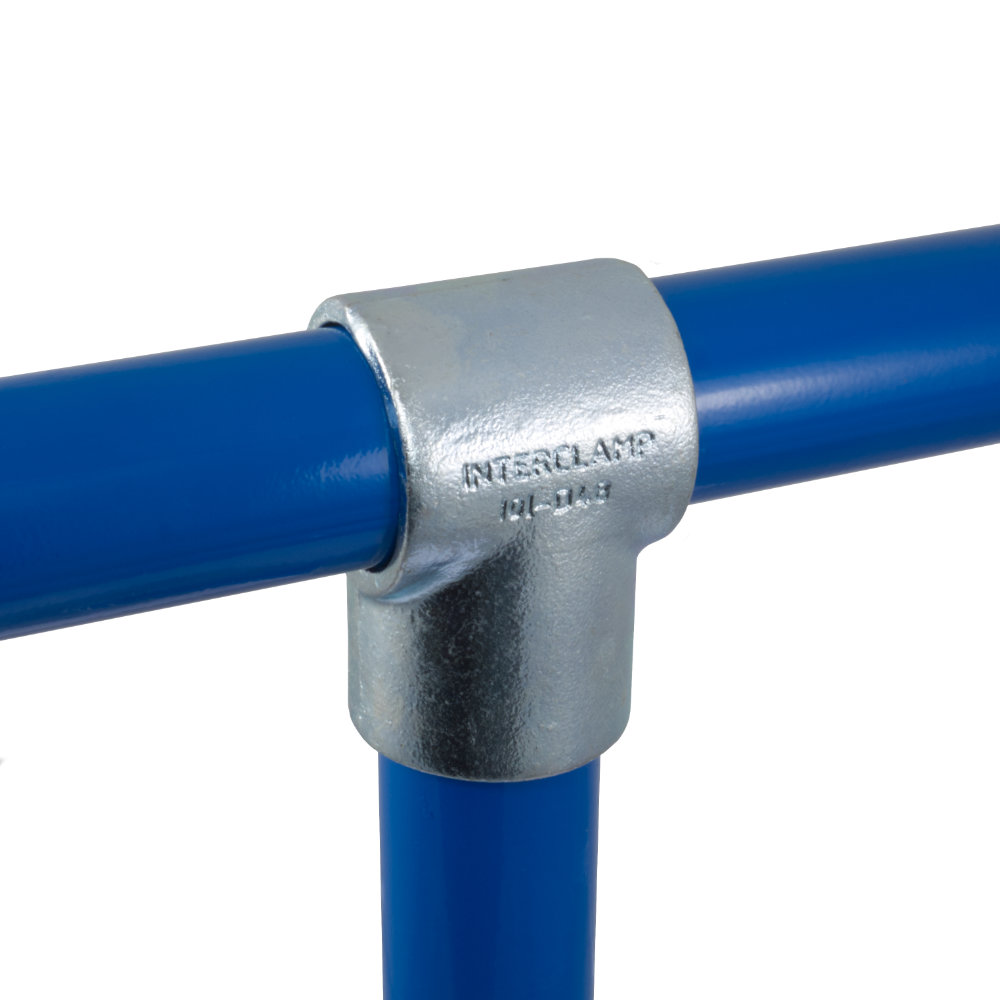

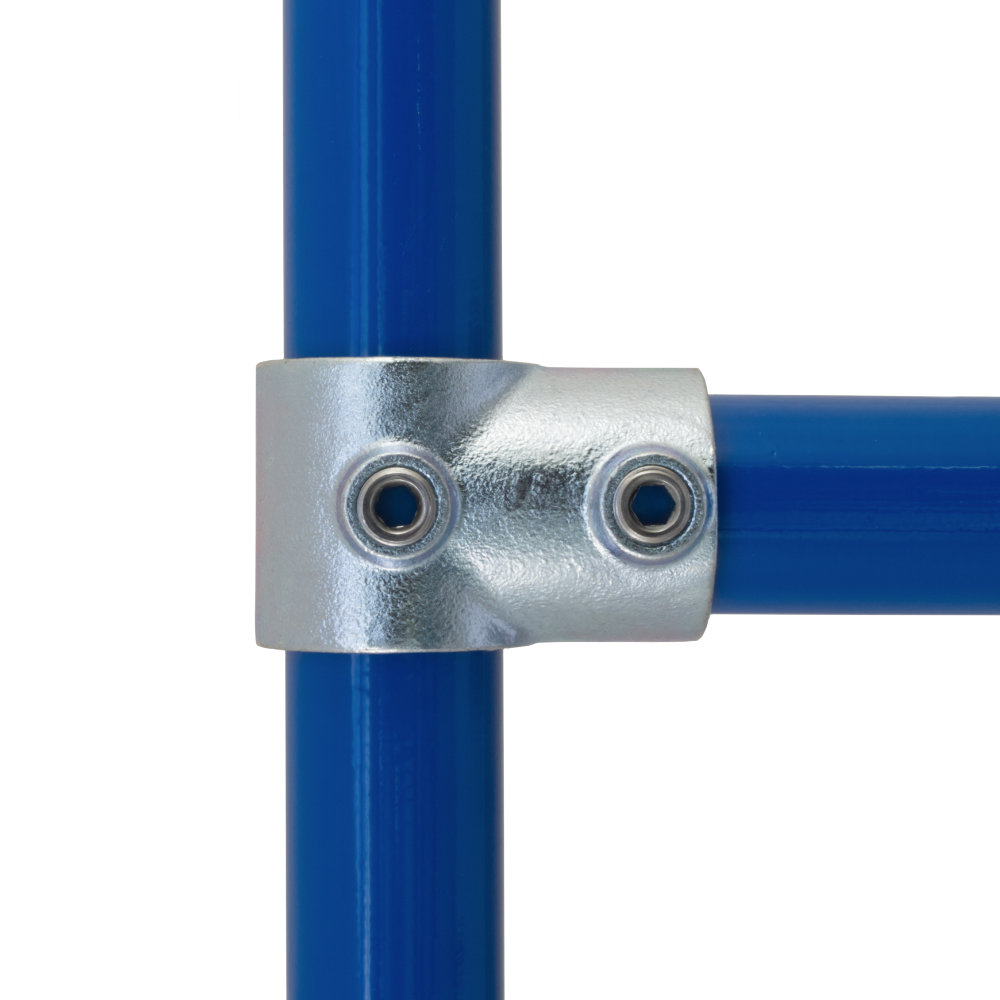

PLEASE NOTE: The Interclamp® 101 short tee pipe clamp cannot be used where a through tube (horizontal in photo) has to be joined within the fitting.

Range Print Next >

Product Data & Dimensions

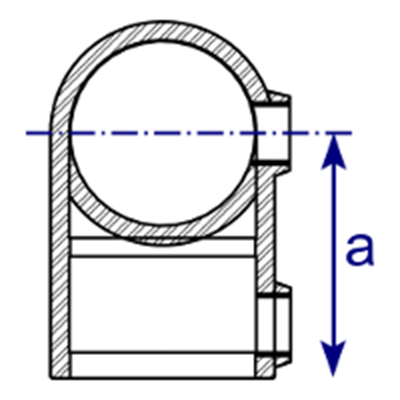

Dimensions Image 1 - 101 - Short Tee

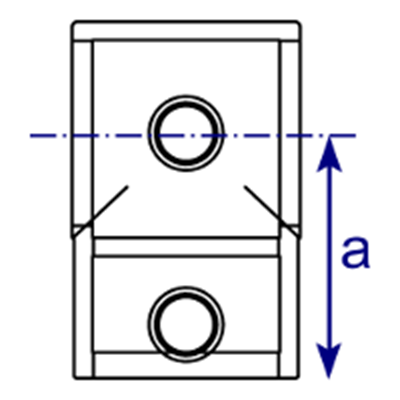

Dimensions Image 2 - 101 - Short Tee
Size a (mm) Weight (Kg) Box Qty* GTIN / EAN No
  A27   41   0.20   165   5060511020008
  B34   46   0.32   84   5060511020015
  C42   60   0.48   50   5060511020039
  D48   68   0.57   42   5060511020060
  E60   84   0.89   22   5060511020091

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
